    SCM-3000-I 35kw Rated Power High Speed Automatic Paper Bowl Machine / Equipment with Heating System Sealing

    Ask Lasest Price
    Brand Name : SEE
    Certification : CE, ISO9001
    Model Number : SCM-3000-I
    Delivery Time : 4 months
    Payment Terms : 30% T/T, 70% L/C
    Supply Ability : 5 sets/month
    • Product Details
    • Company Profile

    SCM-3000-I 35kw Rated Power High Speed Automatic Paper Bowl Machine / Equipment with Heating System Sealing


    SCM-H1 35kw Rated Power High Speed Automatic Paper Bowl Machine / Equipment with Heating System Sealing


    Description:

    SCM-H1 is a complete one & two sides PE coated paper bowl production solution. It's from the paper blank pile, bottom punching work from the paper roll, with the bowl side sealing, bottom whirling and brim roll curling.


    Standard Equipment:

    · 8 vs 8 twin tower can achieve the PCL(water line) process.

    · complete the production of biggish caliber paper container

    · complete electrical installation and control cabinet

    · infinitely variable drive

    · gears running in oil bath

    · heat sealing device for PE coated paper

    · servo-driven bottom-web feed with infinitely variable setting

    · bottom punching and drawing device

    · reel stand for bottom materials

    · compressor for air supply to heaters

    · automatic nesting and counting device

    · complete safety guard enclosure with doors and interlock switches

    · including one set of forming tool and spare parts


    Applications:

    SCM-H1 is designed to make one side & two sides PE coated paper bowl for special size food containers.

    Specifications:

    Specification

    16–45oz (other sizes upon request)

    Sealing

    Heating system

    Capacity

    120 cups/min

    Paper Thickness

    0.3 mm – 0.47 mm

    Rated Power

    35 kw

    Running Power

    26 kw

    Air consumption

    0.8 m3/min at 0.6 Mpa

    Net weight

    4500 kg

    Dimension

    3100mm x 2100mm x 1500mm


    Competitive Advantage:

    · Horizontal machine design

    · Declining paper blank feeding

    · High quality gear driven

    · Advanced cylindrical cam indexing gear

    · Flameless hot air sealing

    · Automatic lubricating

    · PLC closed-loop control system

    · Touch-screen control

    · Servo control for bottom feeding

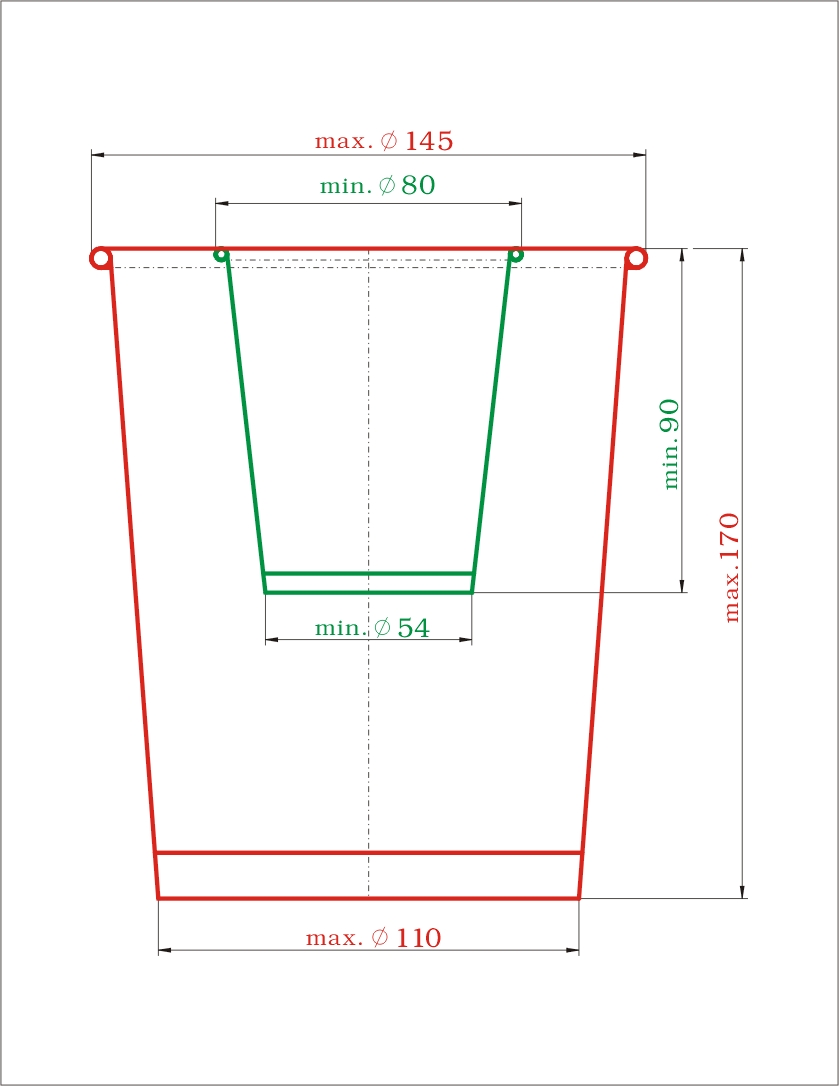

    Finished Product Range:

    · Top Diameter: 80 - 145mm

    · Bottom Diameter: 54 - 110mm

    · Total Height: 90 - 170mm

    Other sizes upon request
