    Large Dimension Disposable Cup Making Machine 15kw Rated Power

    Ask Lasest Price
    Brand Name : SEE
    Certification : CE, ISO9001
    Model Number : SCM-3000-I
    Delivery Time : 4 months
    Payment Terms : 30% T/T, 70% L/C
    Supply Ability : 5 sets/month
    • Product Details
    • Company Profile

    Large Dimension Disposable Cup Making Machine 15kw Rated Power

    SCM-3000 15kw Rated Power Large Dimension Paper Bowl Forming Machines with Ultrasonic side sealing


    Description:

    SCM-3000 is a complete one & two sides PE coated paper bowl production solution. It's from the paper blank pile, bottom punching work from the paper roll, with the bowl side sealing, bottom whirling and brim roll curling.


    Standard Equipment:

    · complete electrical installation and control cabinet

    · infinitely variable drive, gears running in oil bath

    · heat sealing device (hot air & ultrasonic) for PE coated paper

    · servo-driven bottom-web feed with infinitely variable setting

    · bottom punching and drawing device

    · reel stand for bottom materials

    · automatic counting and nesting device

    · vacuum pump

    · compressor for air supply to heaters

    · complete safety guard enclosure with doors and interlock switches

    · tooling for one cup size


    Applications:

    SCM-3000 is designed to make one side & two sides PE coated paper barrel for special size and various shape food containers.


    Specifications:

    Specification

    Max 130oz (other sizes upon request)

    Sealing

    Ultrasonic

    Capacity

    Max. 45 cups/min

    Paper Thickness

    0.3 mm – 0.47 mm

    Rated Power

    15 kw

    Running Power

    12 kw

    Air consumption

    0.5 m3/min at 0.6 Mpa

    Net weight

    4500 kg

    Dimension

    2700mm x 2050mm x 1800mm


    Competitive Advantage:

    · Advanced cylindrical cam indexing gear

    · Flameless hot air sealing

    · Automatic lubricating

    · PLC closed-loop control system

    · Touch-screen control

    · Servo control for bottom feeding

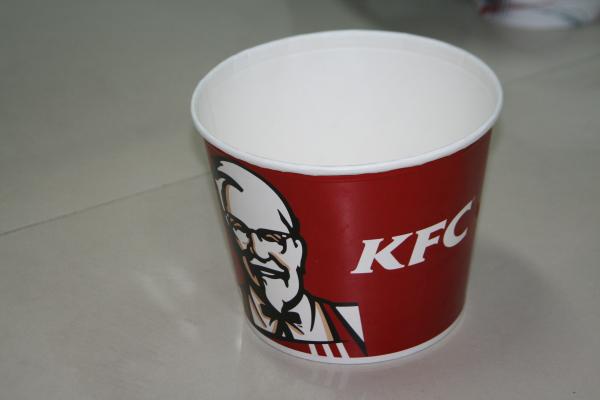

    Finished Product Range:

    · Top Diameter: 120 - 210mm

    · Bottom Diameter: 105 - 180mm

    · Total Height: 50 -140mm

    Other sizes upon request
