    White Horizontal Automatic Paper Cup Machine 150pcs/Min High Speed

    Ask Lasest Price
    Brand Name : SEE
    Model Number : SCM-601
    Certification : CE, ISO9001
    Payment Terms : 30% T/T, 70% L/C
    Supply Ability : 3 sets/month
    Delivery Time : 4 months
    • Product Details
    • Company Profile

    White Horizontal Automatic Paper Cup Machine 150pcs/Min High Speed

    Horizontal 150pcs/min High Speed Automatic Paper Cup / bowl Machine / Machinery


    Description:
    SCM-H1 is a complete both one side and two sides PE coated paper cup production solution. It's from the paper blank pile, bottom punching work from the paper roll, with the cup side sealing, bottom whirling and brim roll curling.

    Standard Equipment:
    · complete electrical installation and control cabinet
    · collection table with automatic counting system
    · infinitely variable drive
    · gears running in oil bath
    · heat sealing device for PE coated paper
    · servo-driven bottom-web feed with infinitely variable setting
    · bottom punching and drawing device
    · reel stand for bottom materials
    · compressor for air supply to heaters
    · complete safety guard enclosure with doors and interlock switches
    · including one set of forming tool and spare parts for each machine.

    Applications:
    SCM-H1 paper cup machine is designed to make both one side & two sides PE coated paper cup for cold and hot drinking.

    Specifications:

    Specification

    4–44oz (other sizes upon request)

    Sealing

    Heating system

    Capacity

    120-150 cups/min

    Paper Thickness

    0.3 mm – 0.47 mm

    Rated Power

    35 kw

    Running Power

    26 kw

    Air consumption

    0.8 m3/min at 0.6 Mpa

    Net weight

    4500 kg

    Dimension

    3100mm x 2100mm x 1500mm


    Competitive Advantage:
    · Horizontal machine design
    · Declining paper blank feeding
    · Gear Driven
    · Advanced cylindrical cam indexing gear
    · Flameless hot air sealing
    · Automatic lubricating
    · PLC closed-loop control system
    · Touch-screen control
    · Servo control for bottom feeding

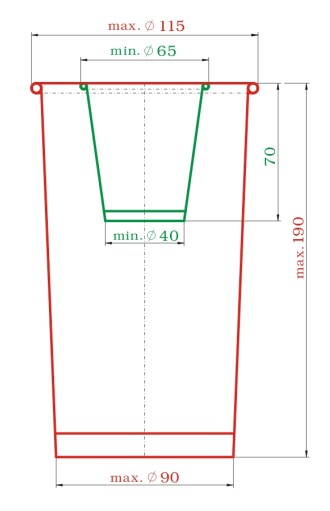

    Finished Product Range:
    · Top Diameter: 65 - 115mm
    · Bottom Diameter: 40 - 90mm
    · Total Height: 70 - 190mm
    Other sizes upon request
